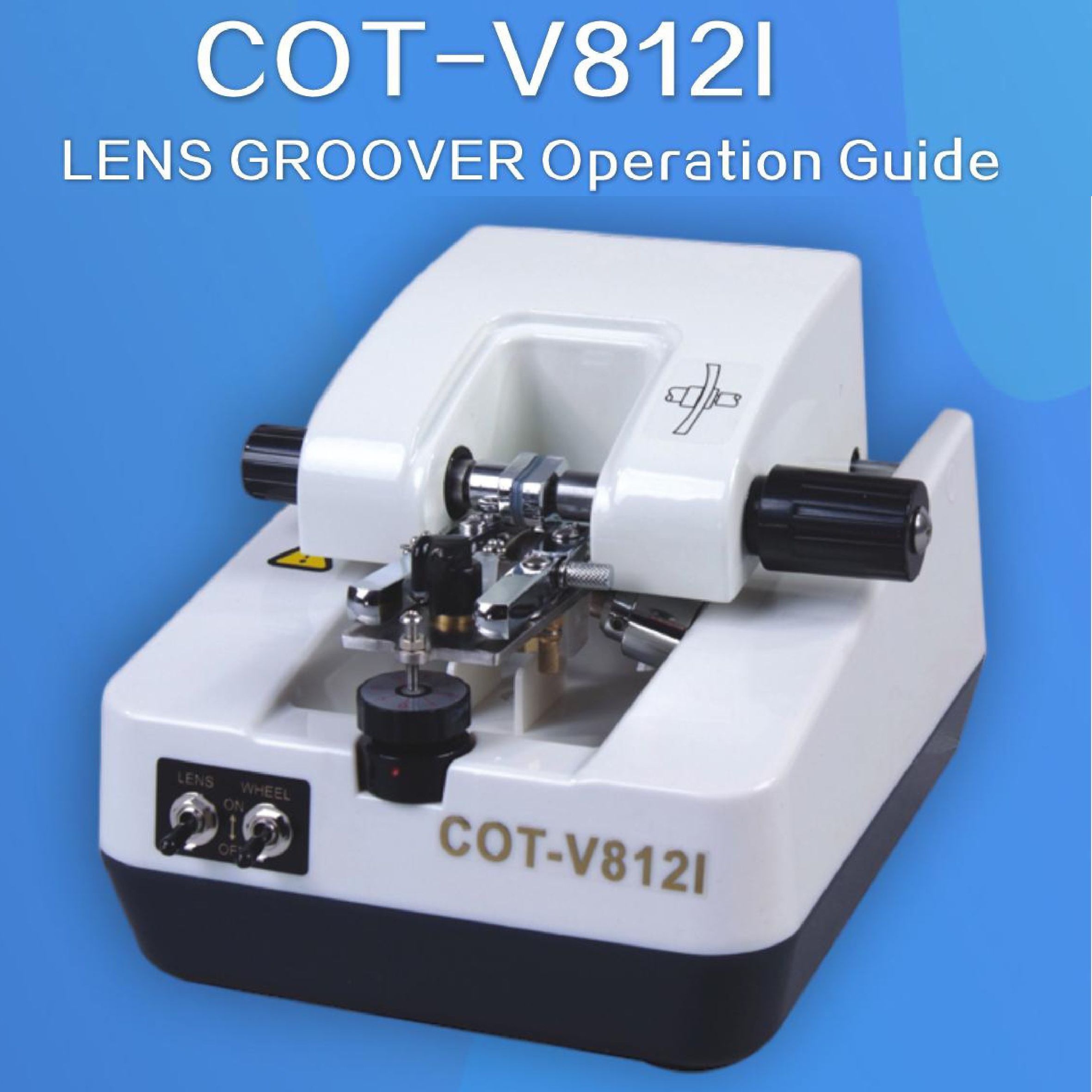

Nylor lens groover COT-V812I (SMV-V812I)
Related Products
Similar Products
Description

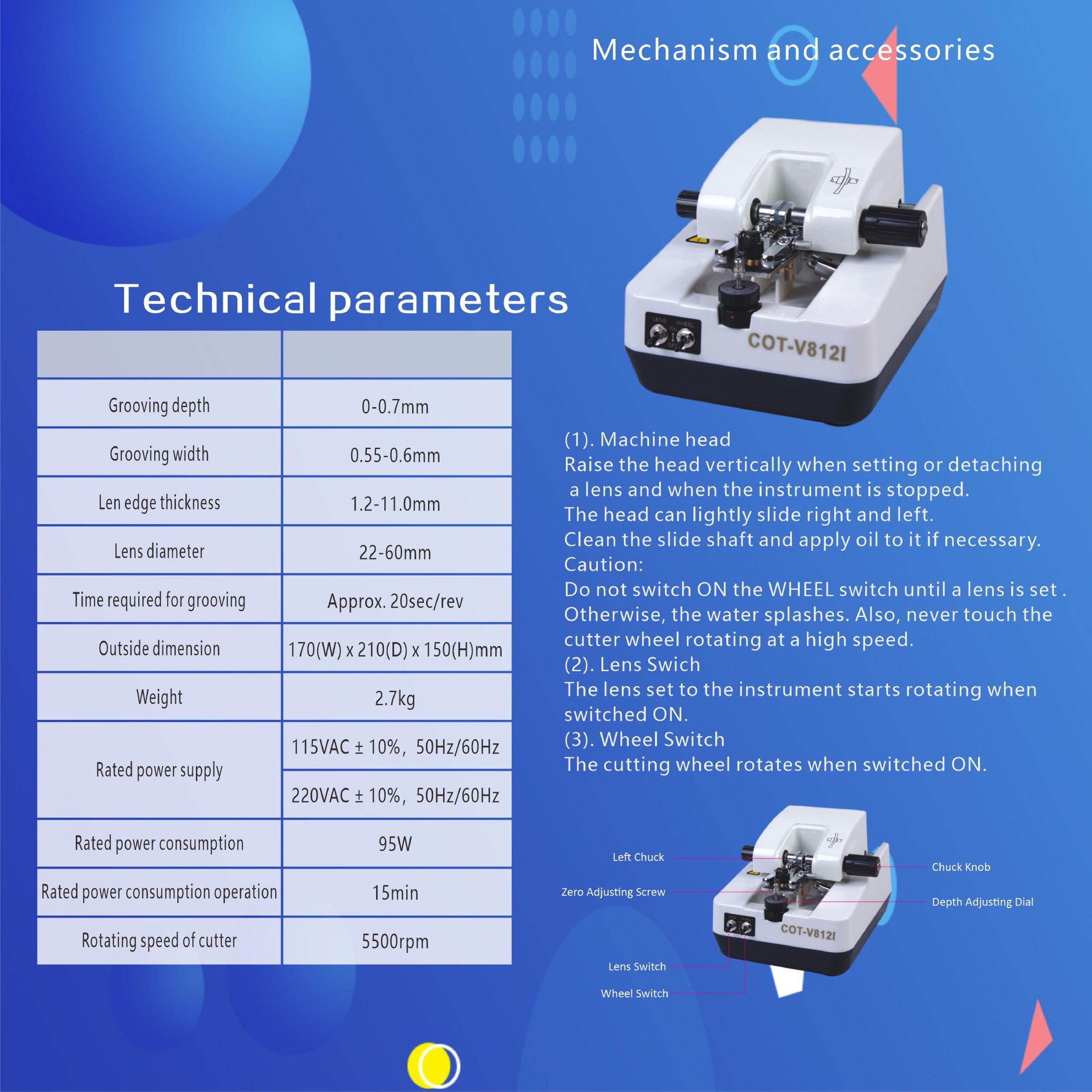

- Grooving depth: 0-0.7 mm
- Grooving width: 0.55-0.6 mm
- Lens edge thickness: 1.2-11.0 mm
- Lens diameter: 22-60mm
- Time required for grooving: about 20 sec/rpm
- Outer size: 170(W) x 210(D) x 150(H) mm
- Weight: 2.7kg
- Power: 220V AC ± 10%, 50Hz/60Hz
- Rated power consumption: 95 W
- Rated operating time: 15 min
- Cutter speed: 5500 rpm
Description
- Machine head: When installing or removing the lens, or when stopping the machine, raise the head vertically. The head may move slightly to the right and left. If necessary, clean the guide rod and lubricate it with oil.
- Caution!: Do not turn on the DISC switch until the lens is installed. Otherwise, water will splash out. Also, never touch the cutting disc while it is rotating at high speed.
- Lens switch: The lens mounted on the device starts to rotate when switched on.
- Circle switch: When switched on, the cutting disc rotates.
Features
Размеры и вес
- 17
- 21
- 15
- 2700
Дополнительная информация
- пластик (plastic)
- индивидуальная (individual)
- No
