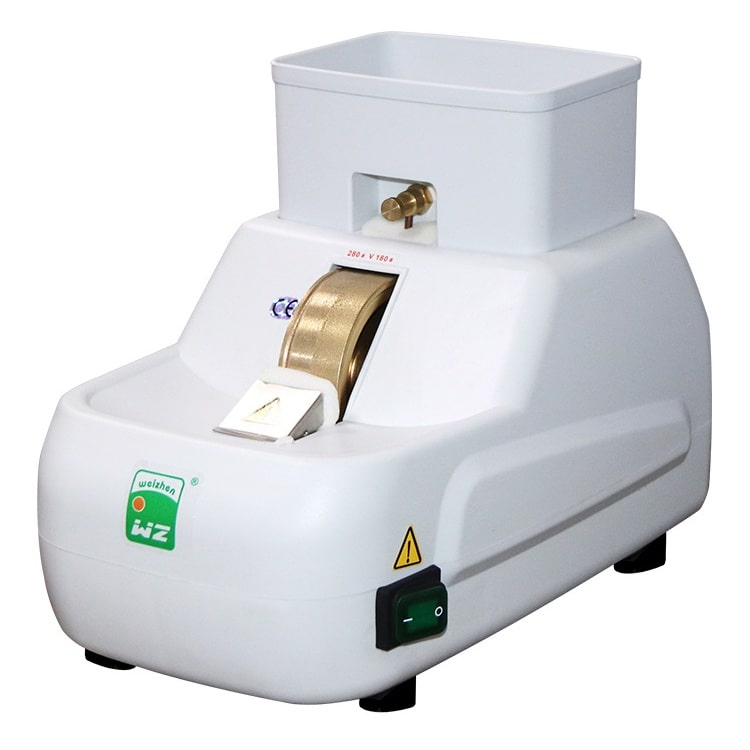

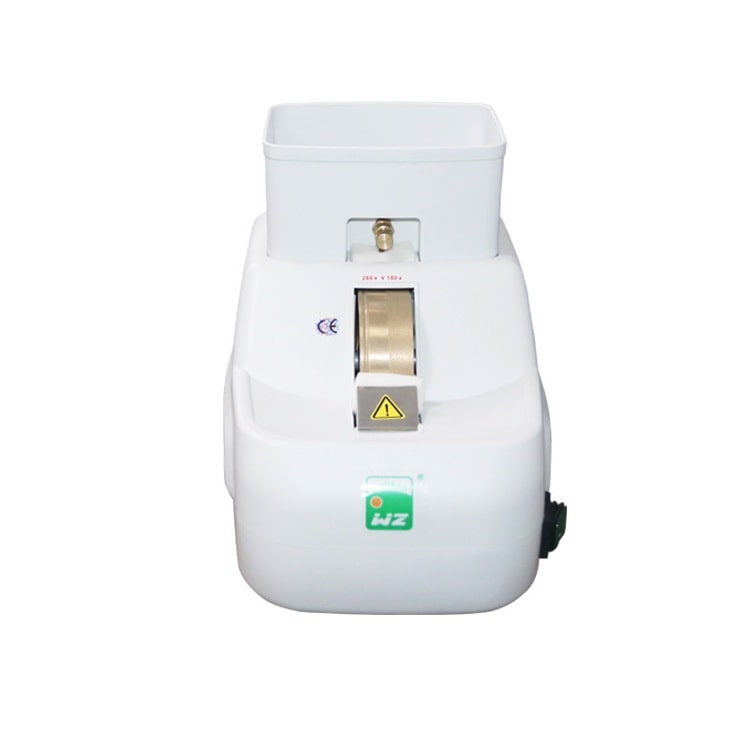

Compact hand-held automatic lens edger griding machine WZ-JP20C
Similar Products
Description: Manual machine with one combined wheel with high rotation speed
- Application: manual turning of all types of spectacle lenses
- Lens material: resin, glass, polycarbonate

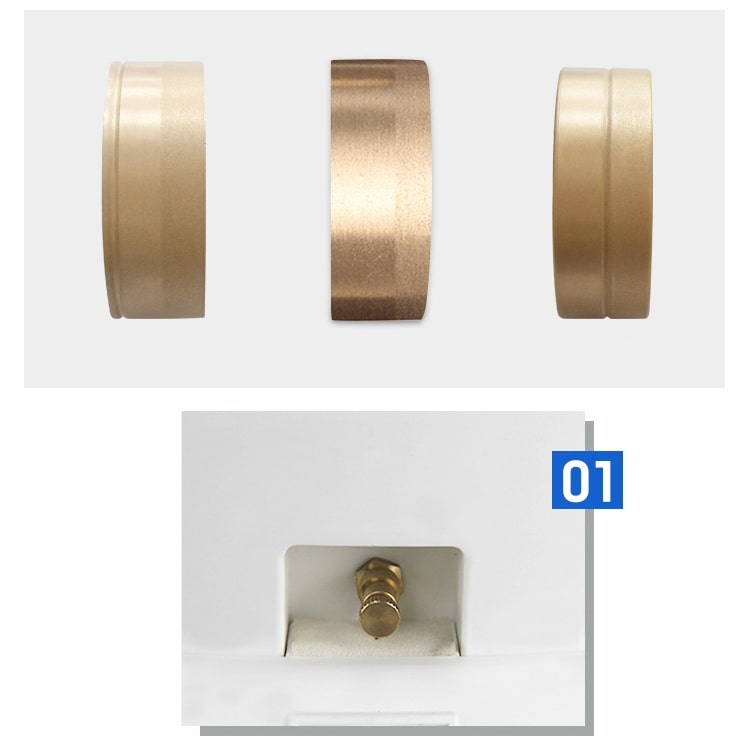

- Combined diamond wheel: rough (180 #) + fine flat (280 #) + facet groove (optional)
- Grinding wheel size: 100 * 35 * 10 mm
- Grinding wheel surface: total width 35 mm, rough right side 16 mm, fine left side + facet groove 19 mm
- Wheel speed: 5500-6000 rpm
- Water supply: from above directly onto the diamond wheel (water tank with regulator is located directly on the machine)

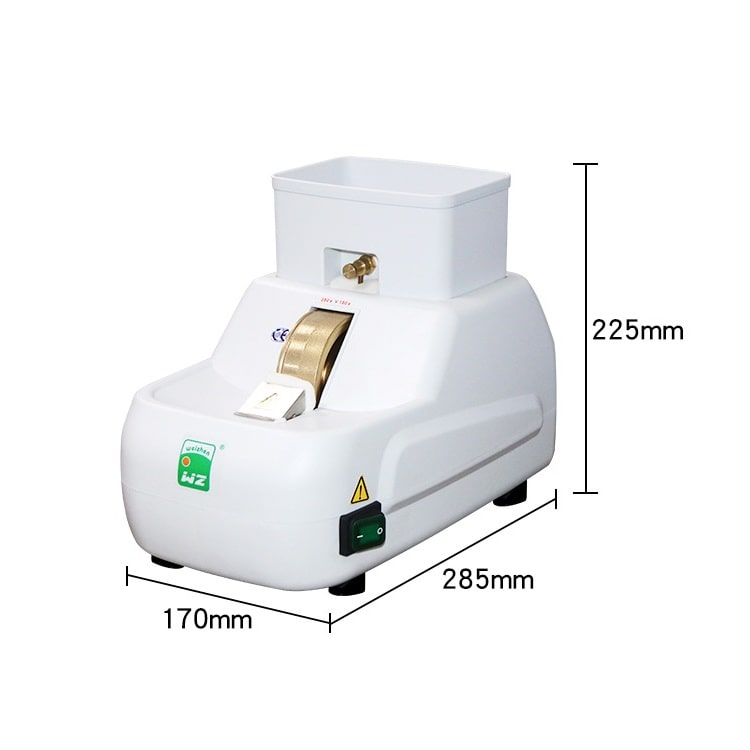

- Product size: 285 * 170 * 225 mm

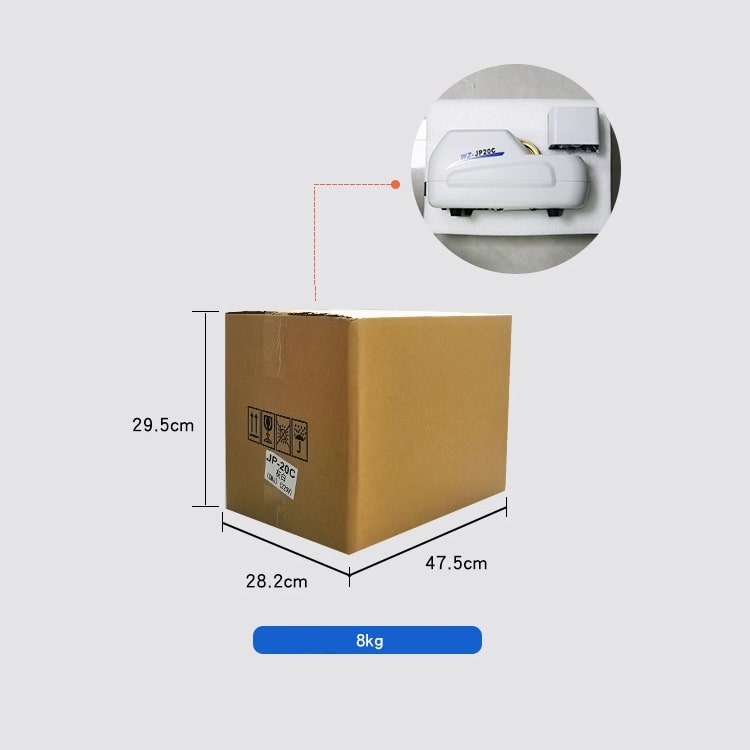

- Packing size: 295 * 282 * 475 mm
- Product weight: 8 kg
- Power: 80 W
- Power supply: 220 V, 50 Hz
- Quality: Grade 1
Description
For specific works and for the lenses grinding, the edger will be useful for lens sharp edge removing. The edger has one combined wheel for rough and fine grinding and a grinding groove. The machine with one combined wheel is used for grinding of any types and materials of eyeglass lenses. High speed wheel rotation. Reverse rotation (optional).An updated model with an upper water supply mode and higher grinding accuracy. Four types of grinding surfaces are suitable for processing CR/GL lenses, the corresponding grinding wheel can be selected according to the lens material.
