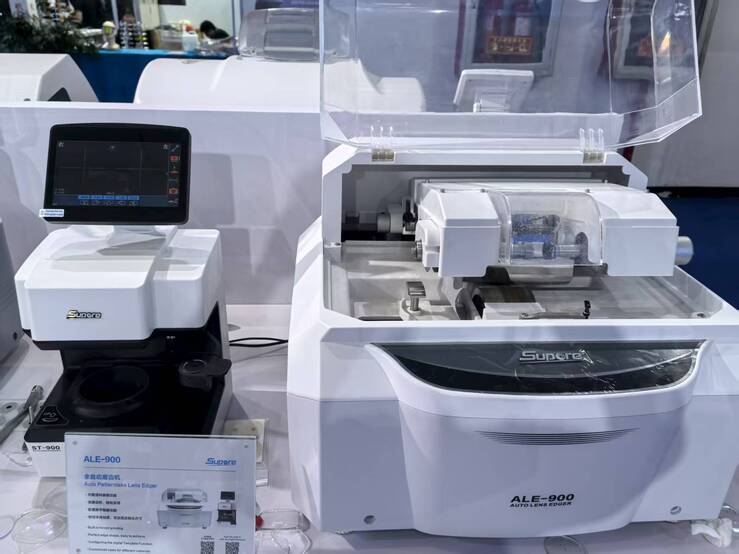

Product Name: ALE-900 Patternless Auto Lens Edger
Description
ALE-900
- Dimension: 620mm*520mm*600mm
- Weight: 55 kg
- Voltage: AC220/110V 50/60HZ
- Power: 550 W
- Accuracy: Tolerance±0.01mm
- Size range: 20mm~80mm
- Axis accuracy: 0.1°
- The adjustable step length of size: 0.05 mm
- Facetlineoffset:none(inautomaticmode)
- Clamping pressure: 80 kg
- Material: CR-39, high index lens, super hard coating lens, glass lens, PC lens, Trivex lens
- Wheel A : plastic, polycarbonate
- Wheel B : plastic, polycarbonate, glass
- Milling cutterforfishing line:no notinanyof the configurations
- The processing type:pointy edges,platband,bevel polishing,platband polishing.
- Screen: high-resolution 640*480,truecolor,5.7 inch TFT LCD, Lens photograph displayed as 1:1 and with use-friendly operationg interface.
- The instructionsfor the productinEnglish are locatedin the Filestab
- Instructionsfor the device: a discwithinstructionsinEnglish will beincludedin the kit
Scanner ST-900
- Dimension: 325mm*250mm*205mm
- Weight: 5 kg
- Voltage: AC230V/115V 50/60HZ
- Power: 60 W
- ADD adjustment range: 6 mm
- Screen tilt angle: 0~130°
- Max storage: 500 sets
- Touch screen: 7 inch capacitive screen
- Quantity of connecting with the main machine: 2 units
Description
- More stable independent main body
- One scanner can connect with 2 edger
- Two scanners with different settings meeting different requirements at various levels
- Touch screen facilitating the quick optical scanning
- Editable shape, size and ADD area
- More concise design of the integrated scanner and blocker
Round A (no roughing wheel): plastic, polycarbonate
Round B (there is a rough circle, beveled groove): plastic, polycarbonate, glass
