Automatic 3D edge banding machine without templates.

• 10.4" high resolution industrial LCD system (1024*768 resolution);
• High speed variable speed main motor, large grinding wheel (155mm diameter) for fast and precise cutting;
• Frame change function, mini chamfer functions, adjustable chamfer height;
• Chamfer polishing, flat edge polishing, adjustable chamfer position;

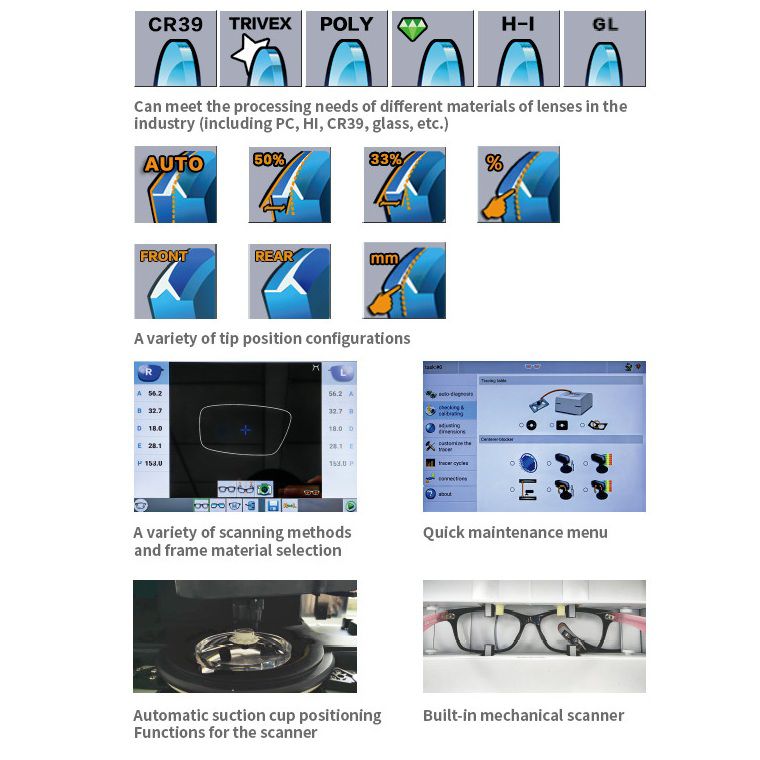

• Various material processing modes (regular resin lens, high index lens, hard lens, PC lens);
• Intelligent detection processing mode, adjusting the lens, the cutting speed in real time depends on the thickness and hardness of the lens, which ensures the safety of the axes;
• RS232 and Wi-Fi are connected to the ST-1800 scanner.

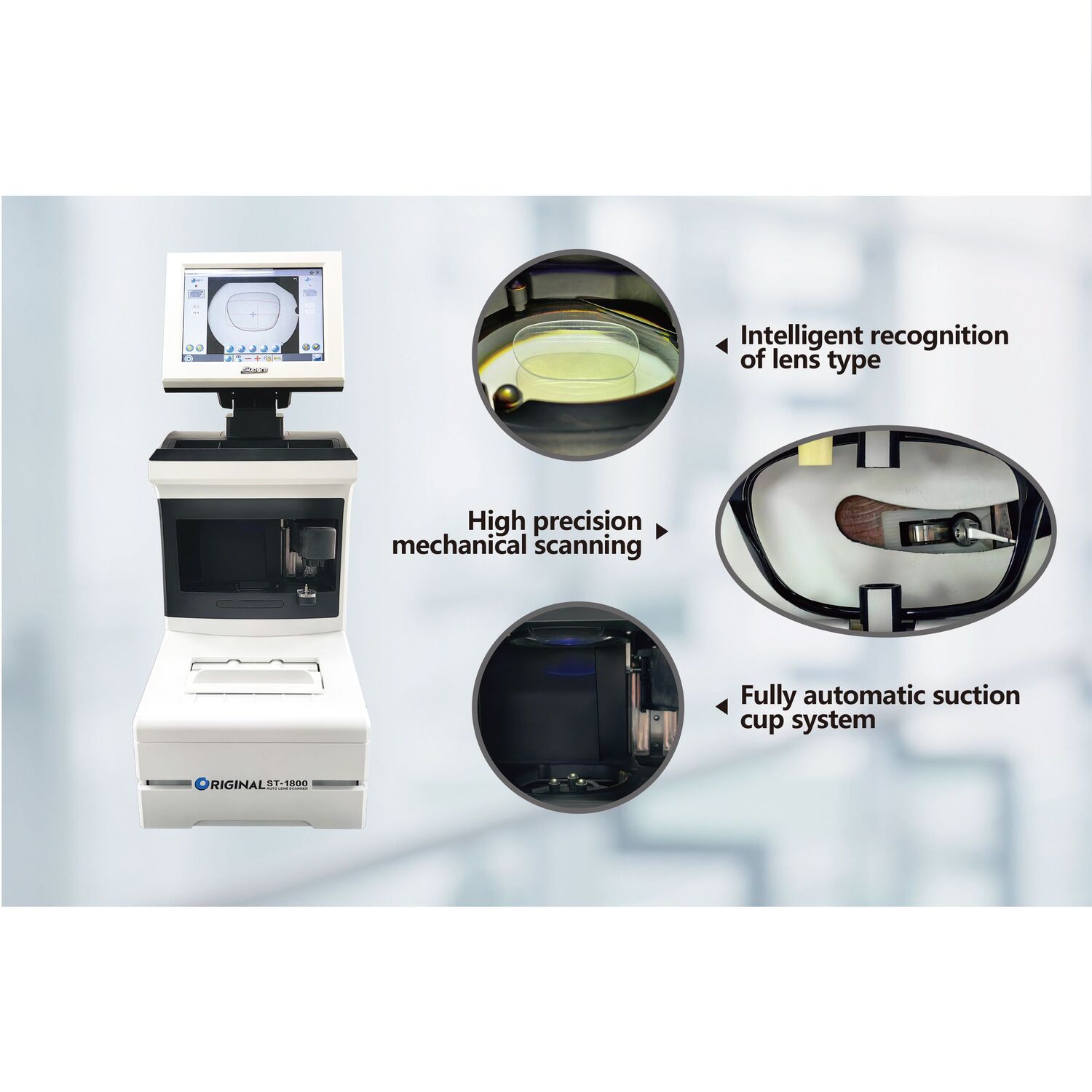

• 10.4" high resolution industrial LCD display (1024*768 resolution);
• Built-in mechanical scanner for single-sided frame scanning, double-sided frame scanning, and template scanning:
• Built-in optical scanner that automatically determines the axis position, scaling and changing the image shape;
• Built-in optical locking, automatically picking up and positioning suction cups, manual centering, automatic recognition of three-point centering;
• Automatic saving of scanned data in memory, save functions when power is turned off;
• RS232 connection (one for two), Wi-Fi connection for networking.
