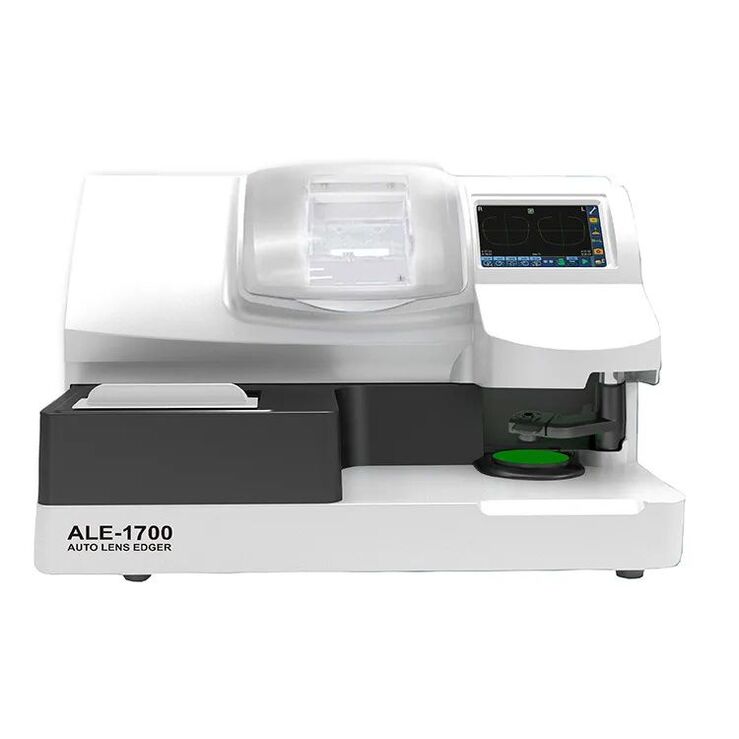

Auto 3D patternless lens edger with groover ALE-1700基本款 / ALE-1700G开槽
Related Products
Similar Products
( 0)
¥ 21 000.00
( 0)
¥ 20 000.00
( 0)
¥ 36 000.00
Description
- Comparison of the ALE-1700 and ALE-1700G models:
- Groove: ALE-1700 - no, ALE-1700G - yes
- Package (see photo):
- №1 - plastic box for clean water
- №2 - consumables - plastic blocks and rubber suction cups - to hold the lens in the machine
- №3 - metal box for dirty water
- №4,5 - pump for the machine - pumps water for the machine
- №6 - nylon bag for collecting abrasive from lens processing
- Application: turning and processing of any type of spectacle lenses in automatic mode.
- Suitable lens materials: glass, CR plastic, polycarbonate
- Available range of lenses: Ø mm
- Edge diameter: ≤80 mm
- Flat edge processing (without protective edge): ≥19 mm
- Tip processing (without protective edge): ≥19 mm
- Scanning size by width: min. 20 mm, max. 58 mm
- Scanning size by length: min. 30 mm, max. 68 mm
- Frame thickness: min. 2.0 mm, max. 16mm
- Screen: 7-inch LCD touch screen with a resolution of 1024x600
- Size: 720 * 660 * 460 mm
- Weight: 75 kg
- Power: 1500 W
- Pump power: ≤ 350 W
- Voltage: 220 V, 50 Hz
- Pump voltage: 220 V, 50 Hz
- Noise: dB
- Ambient temperature: 5 ℃ ~ 40 ℃
- Quality: Class 1, European Certificate of Conformity
Video instructions on the operation of the machine: Open on docs.yandex.ru
Description
| Feature | ALE-1700 | ALE-1700G |
|---|---|---|
| Groove function | ❌ Without groove | ✅ With groove (special edge processing) |
| Price | 6,000元 cheaper | More expensive for additional function |
| Application | General tasks | Suitable for materials requiring groove processing (e.g. furniture fronts) |
| Working speed | Basic | Possible improvement due to the groove function |
Automatic 3D edgebanding machine without template.

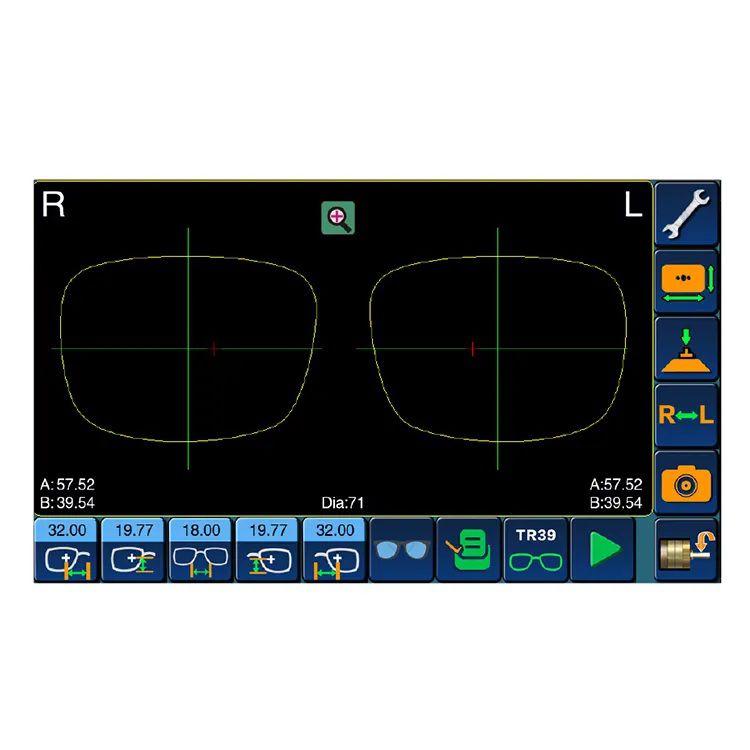

Machine features:- 7-inch HD LCD touch screen with 1024x600 resolution. Graphic display for left and right glasses.
- Built-in sharp and flat edge grinding wheel, built-in slot, inverted edge function.
- Built-in 3D scanner provides single/binocular and pattern scanning.
- Preview interface allows you to quickly input interpupillary distance and pupil height.
Features
Размеры и вес
- 72
- 66
- 46
- 75000
Дополнительная информация
- металл (metal)
- индивидуальная (individual)
- No
