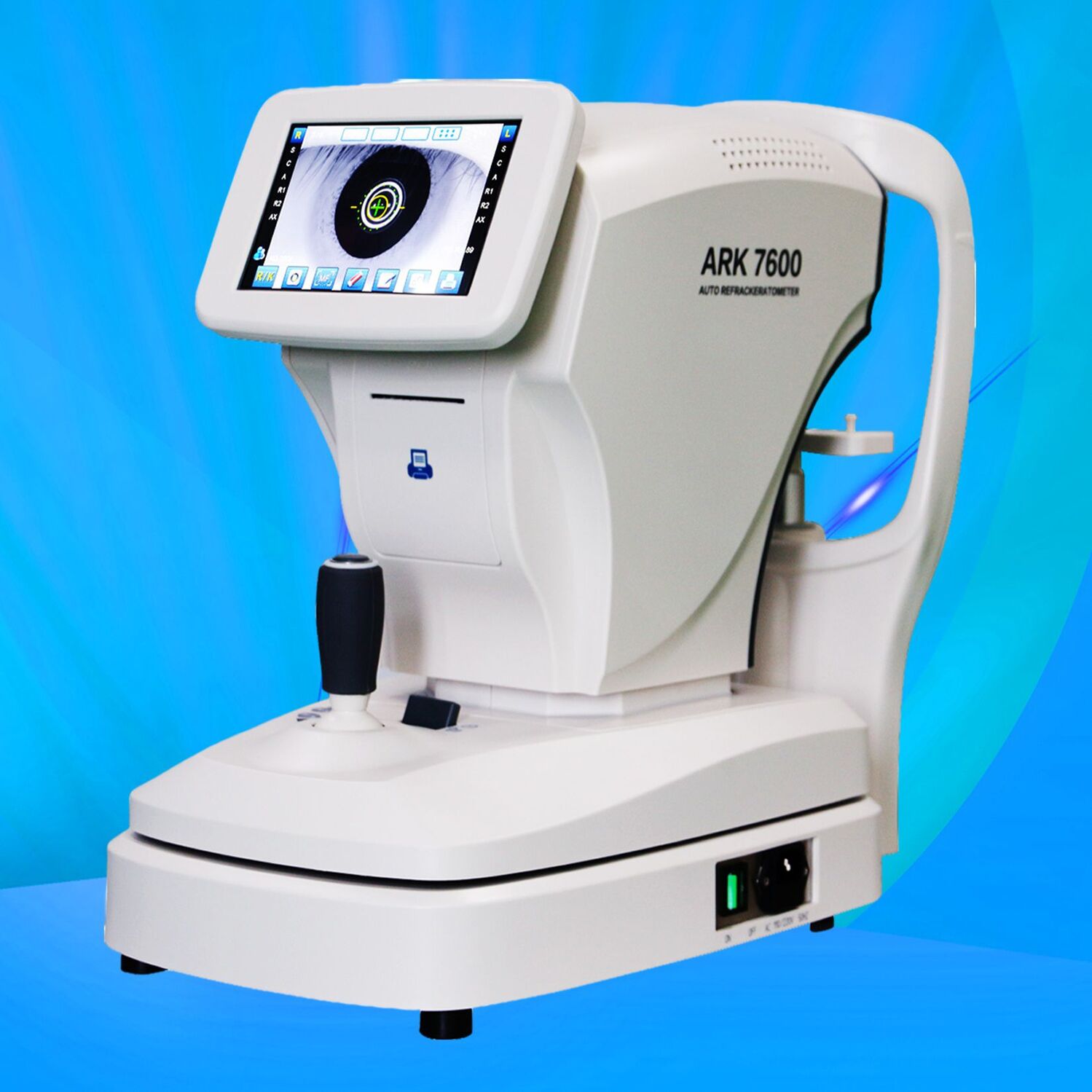

Autorefractometer/autorefrkeratometer COT AR(K)-7600
Similar Products
Briefly about the product
- Download instructions in English
- Distance to corneal apex: 0.0 mm, 12.00 mm, 13.50 mm, 15.00 mm
- Sphere: -20.00D ~ +20.00D, (VD = 12 mm, pitch: 0.01 / 0.06 / 0.12 / 0.25)
- Cylinder: 0.00D ~ 6.00D (step: 0.12 / 0.25D)
- Axis: 1° ~ 180°(step: 1°)
- Cylinder symbol: -, +, ±
- Rotation degree: 90°
- Distance: 10 ~ 86 mm
- Minimum pupil diameter: 2.00 mm
- Pupil diameter: 2.00 ~ 8.00 mm
- Curvature radius: 6.5 ~ 9.4 mm (step: 0.02mm)
- Corneal Diopter: 33.00D ~ 67.00D (Refractive Index: 1.3375)
- Printer: 57 mm thermal printer
- Display: 7" TFT touch screen (adjustable viewing angle)
- Visual Standard: Guide Cloud Map
- Measurement completion time: < 0.5 seconds
- Package size: 750 * 400 * 580 mm
- Package weight: about 24 kg (product weight: 17.5 kg)
- Power: 400 W
- Power: AC 100~250 V, 50/60 Hz
- Country of origin: China
Description
ARK7600/AR7600 advantages:
- The Keratometer uses advanced wavefront technology to measure the patient's refractive status. Thanks to the Hartmann-Shack sensor and unique optical system, it provides fast inspection and accurate measurement results based on aberration analysis.
- Adjustable LCD screen, electric lift support, manual focus, automatic metering.
- Two-point alignment with automatic measurement. The device uses two-point alignment technology, objective focusing method. When two points are aligned horizontally, it means the measurement is in focus. This improves focusing accuracy compared to subjective observation of the operator's eyes. When focusing, the device automatically takes measurements in automatic mode.
- Data register. Each measurement stores 3 groups of data, a maximum of 10 groups of data can be saved.
Features
Размеры и вес
- 17500
Дополнительная информация
- пластик (plastic)
