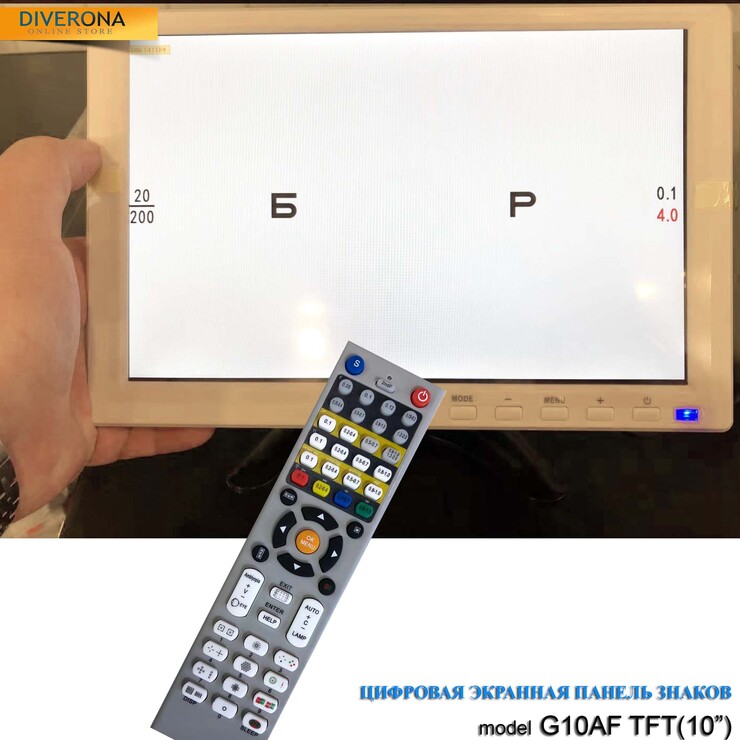

Auto chart projector, 10, G10AF TFT
Related Products
Similar Products
Product summary
- Tests and tables (see photo):
- Landolt rings and "E" tests
- Letters and numbers
- Silhouette pictures for children
- Rabkin's tables
- Duochrome test
- Schober test
- Worth test
- Stereotest
- Hering's definition of phoria
- Snellen's radiant figure
- Astigmatic test of a group of points
- Input power supply options: 100-240V, 50/60Hz
- Typical power consumption: approx. 45W
- Power consumption: less than 2W
- Maximum screen resolution: 1440x900
- Distance between screen dots: 0.284 mm
- Screen type: LCD
- Screen aspect ratio: 16:9
- Screen size: 10 inches
- Color Depth:
- Viewing angle: 170° (horizontal), 160° (vertical)
- Maximum brightness: 300 cd/m2
- Maximum contrast: 1000:1
- Signal response time: 5 ms
- Total size: 300 * 230 * 30 mm
- Package size:
- Total weight: 0.5 kg
- Working distance: 0.5~4.0 m
- Visual acuity recording method: recording decimal English scores
- Remote control distance: <5m
- Installation method: bracket, can be placed or hung on the wall
Description
The on-screen ophthalmic sign projector is an automatic display system of optotypes and is designed to project various test signs in the study of monocular and binocular vision and the purpose of optical correction for distance. It allows you to determine visual acuity for distance, astigmatism and the direction of the main meridians of the astigmatic eye, the state of binocular vision, hyperophoria and other deviations. The device is controlled using a special remote control.
