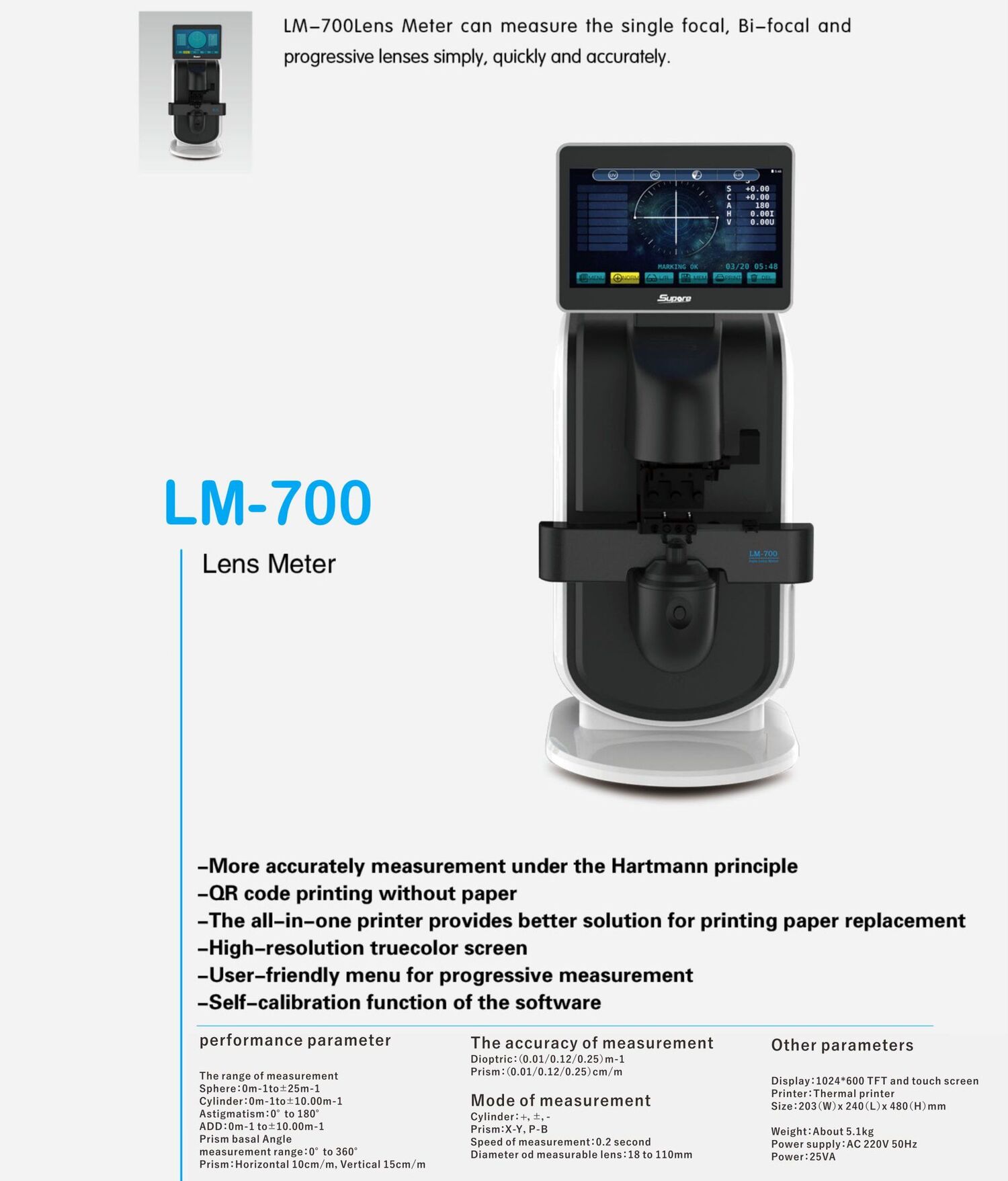

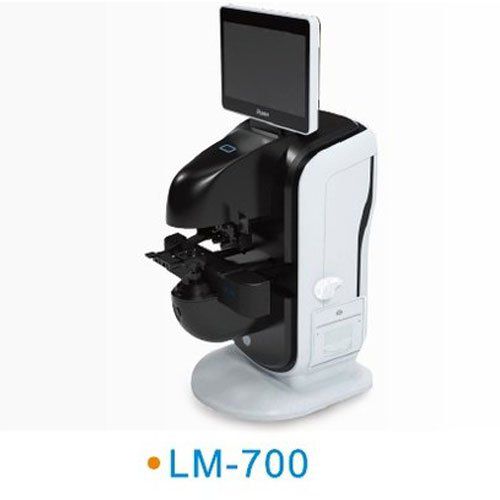

Lens meter automatic projection Supore LM-700

Article LM-700

Brand: Supore

Rating: 0 (ratings 0)

Related Products

Inkpot for coloring the marking needle, spare part for the LM-700 diopter

0 (ratings 0)

¥ 55.00

	Model	Article	Цвет оправы	mix	Price	Availability	Quantity, pcs
	Lens meter automatic projection Supore LM-700	LM-700	700	mix	¥ 5 000.00	В наличии
	Lens meter automatic projection Supore LM-700	LM-700	700A	mix	¥ 4 500.00	В наличии

Buy

Compare

Description: Two device versions: with a printer for a recipe and without printer!!!

The difference: LM-700A - does not have a printer and there is no PD measuring and no ruler/platform (but it is possible to mark the lenses). All other functions are identical to LM-700.

Spherical degree: 0~±25.00D
Cylindrical degree: 0~±10.00D
Under plus degree: 0~10.00D
Axis for astigmatism: 0°~180°
Prism basal angle: 0°~360°
Prism degree: Horizontal direction 15Δ, vertical direction 20Δ
Lens size: Ø7~110mm
Lens thickness: ≤20mm
UV transmissivity: Yes
Range of PD: 30~100mm
Range of PH: 4~55mm
Power: 220V, 25VA
Power adapter: AC110~220V
Product Size: 203mm×240mm×480mm
Package size: 360mm×360mm×570mm
Weight: 8 kg

Description

On an automatic diopter meter, the measurement is made by a green LED light source with a wavelength of 545 nm, which does not require ABBE compensation, which makes the measurement of any lenses faster, more stable and accurate.
There is a convenient platform for lenses, automatic detection of the type of lens, automatic measurement mode. Measures all types of lenses.
Additionally it has functions:
- UV measurement.
- Measurement of interpupillary distance (PD).
